488 Magnum Designs 94-02 Ram 4x4 Indicator Light Relocation Kit

488 Magnum Designs 94-02 Ram 4x4 Indicator Light Relocation Kit

Regular price $28.99 USD
Regular price Sale price $28.99 USD
Sale Sold out
Shipping calculated at checkout.

FREE SHIPPING TO LOWER 48 STATES

Include Switch?

When eliminating the CAD(center axle disconnect) on 94-02 Ram pickups you lose functionality of the 4x4 indicator light. This is typically done when switching to free spin hubs. With this kit you can eliminate the vacuum switch on the transfer case and multiple feet of leak prone vacuum line while retaining functionality of your 4x4 indicator light. Elimination of potential vacuum leaks can help prevent/correct the crazy vents these trucks are also known for. Optional switch is different than the stock switch found on the CAD and cannot be reused.

Installation is simple with zero permanent modifications to your truck. Simply remove the existing vacuum switch and lines, route the harness where the vacuum lines were, replace vacuum switch with electric switch, and plug it into the existing 4x4 switch harness to the CAD.

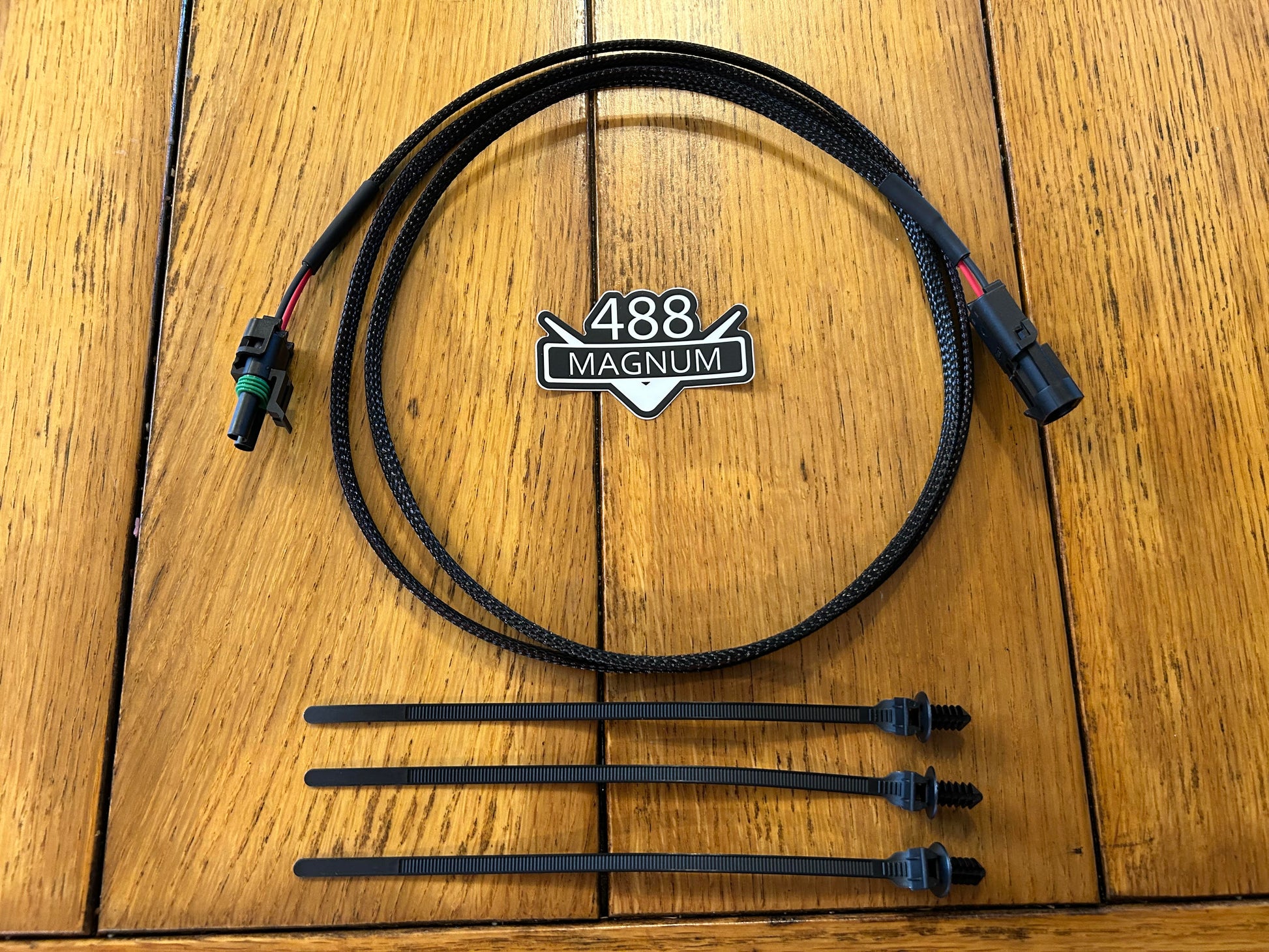

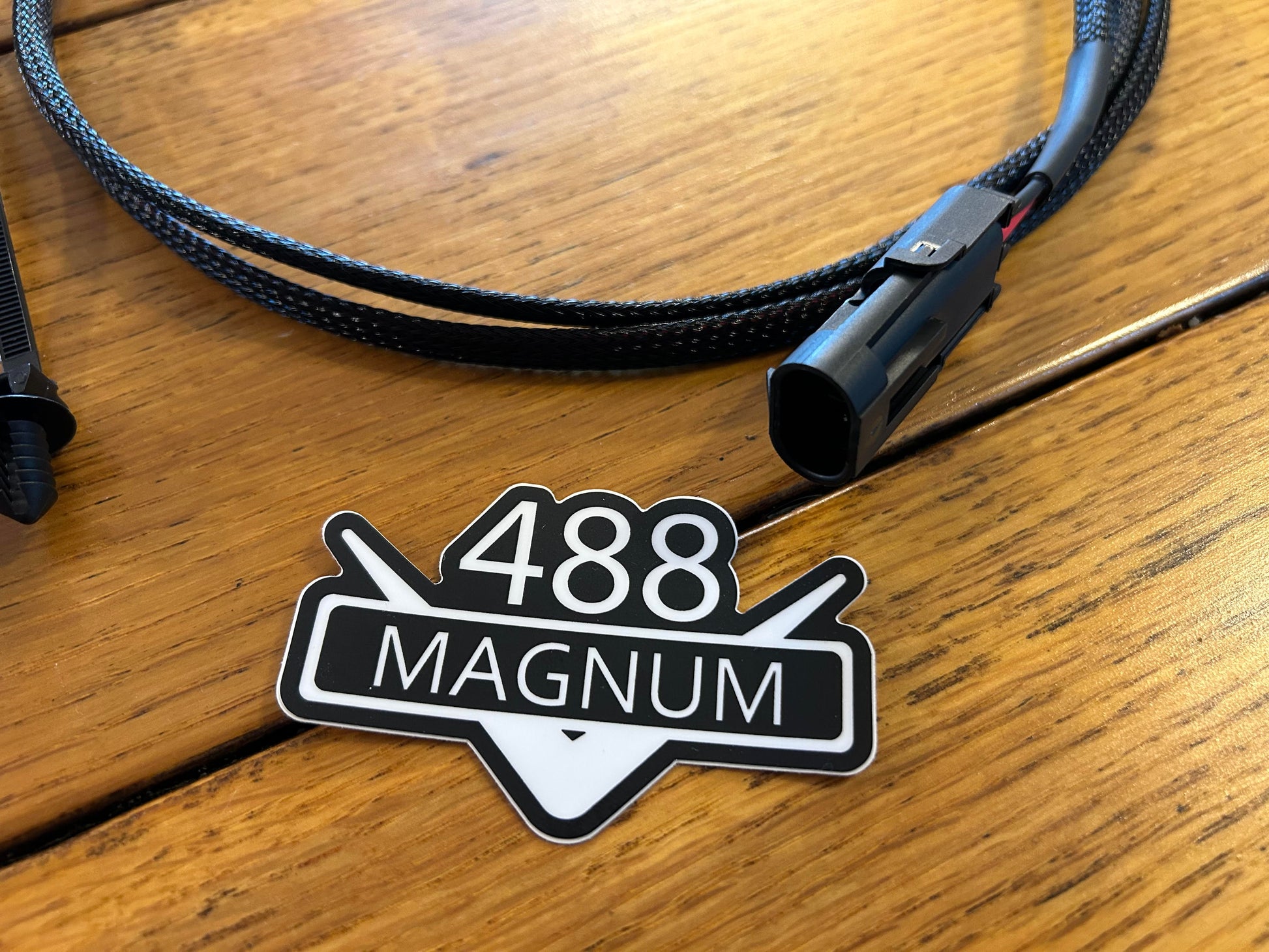

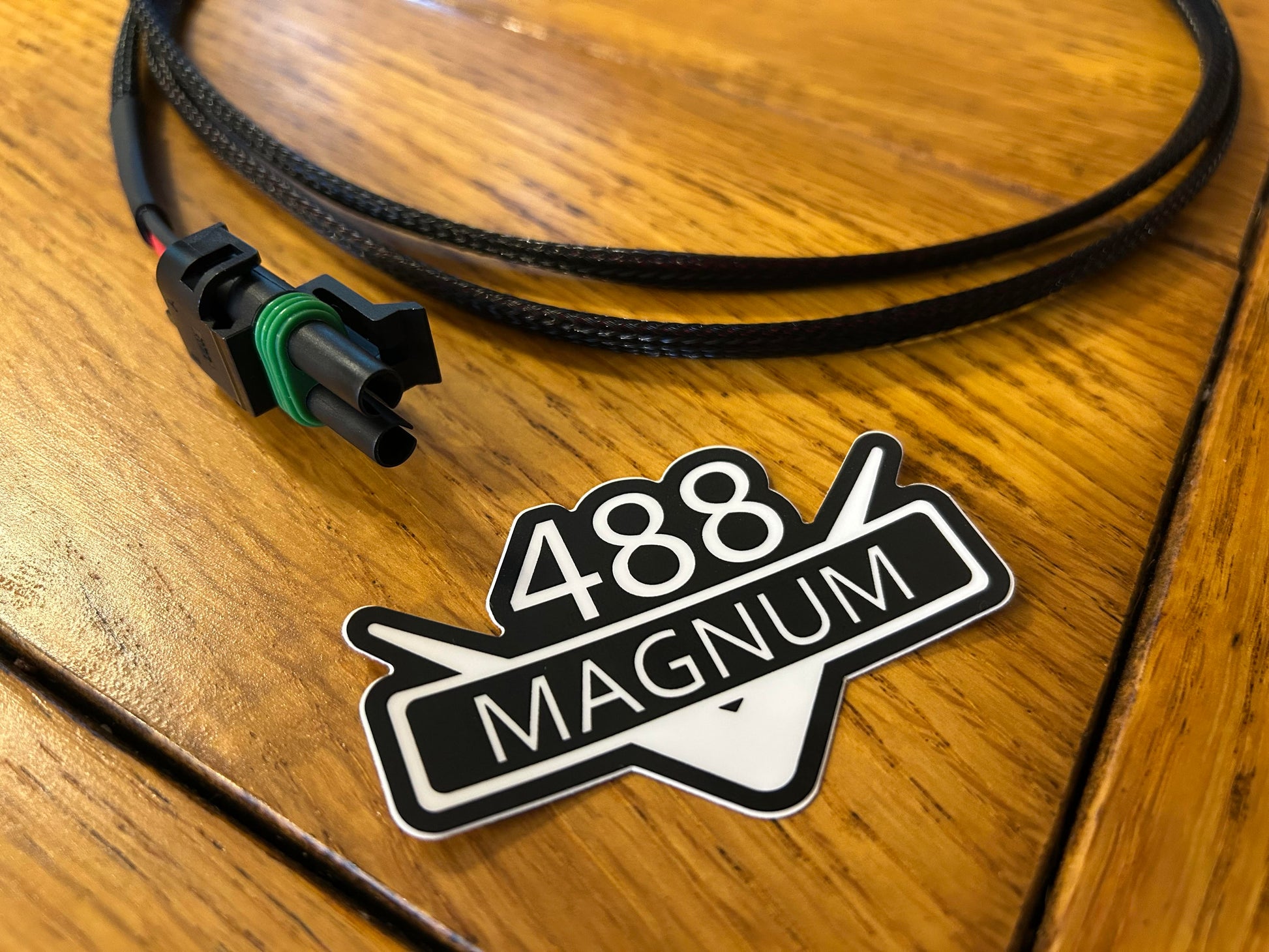

Assembled in Iowa with high quality MADE IN USA GXL automotive wire, braided sheathing, and weather proof connectors.

Pushpin zip ties included to retain harness to frame where original vacuum lines attached.

This kit can also be used with Posi-lok kits to remove the harness hanging down in a vulnerable location in off road situations.

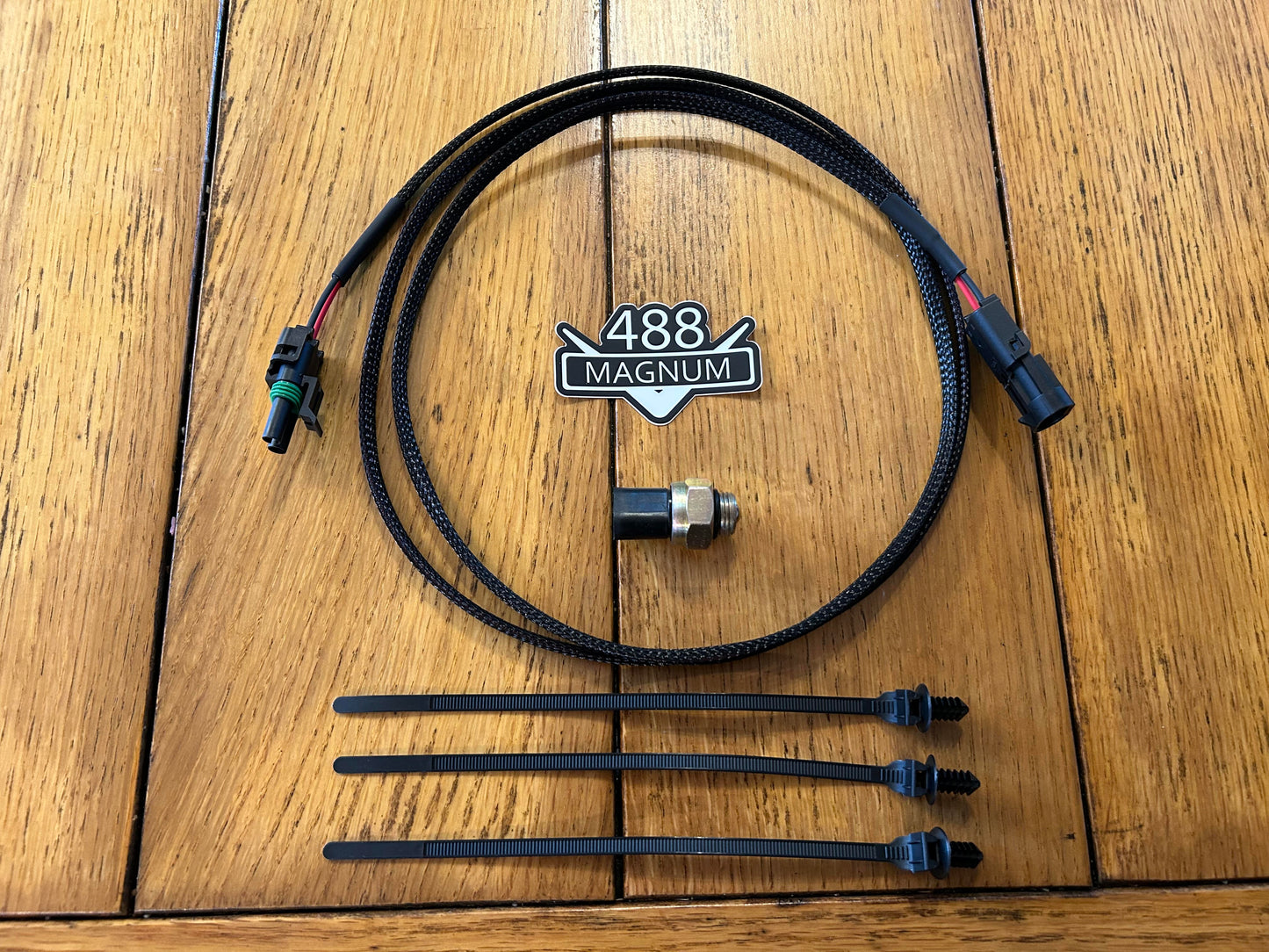

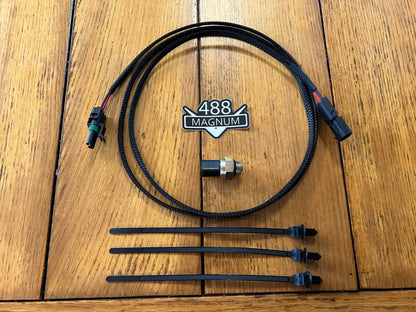

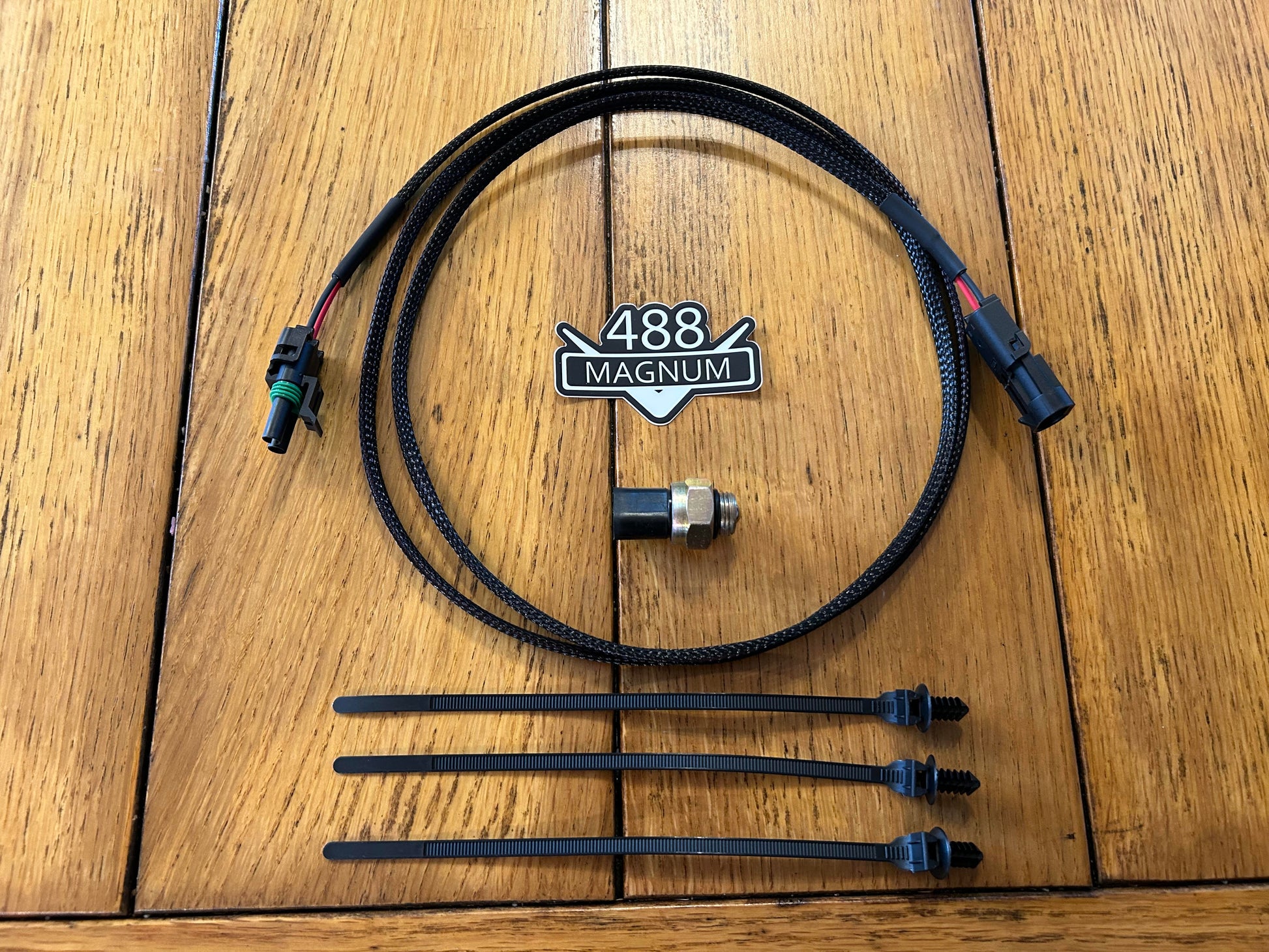

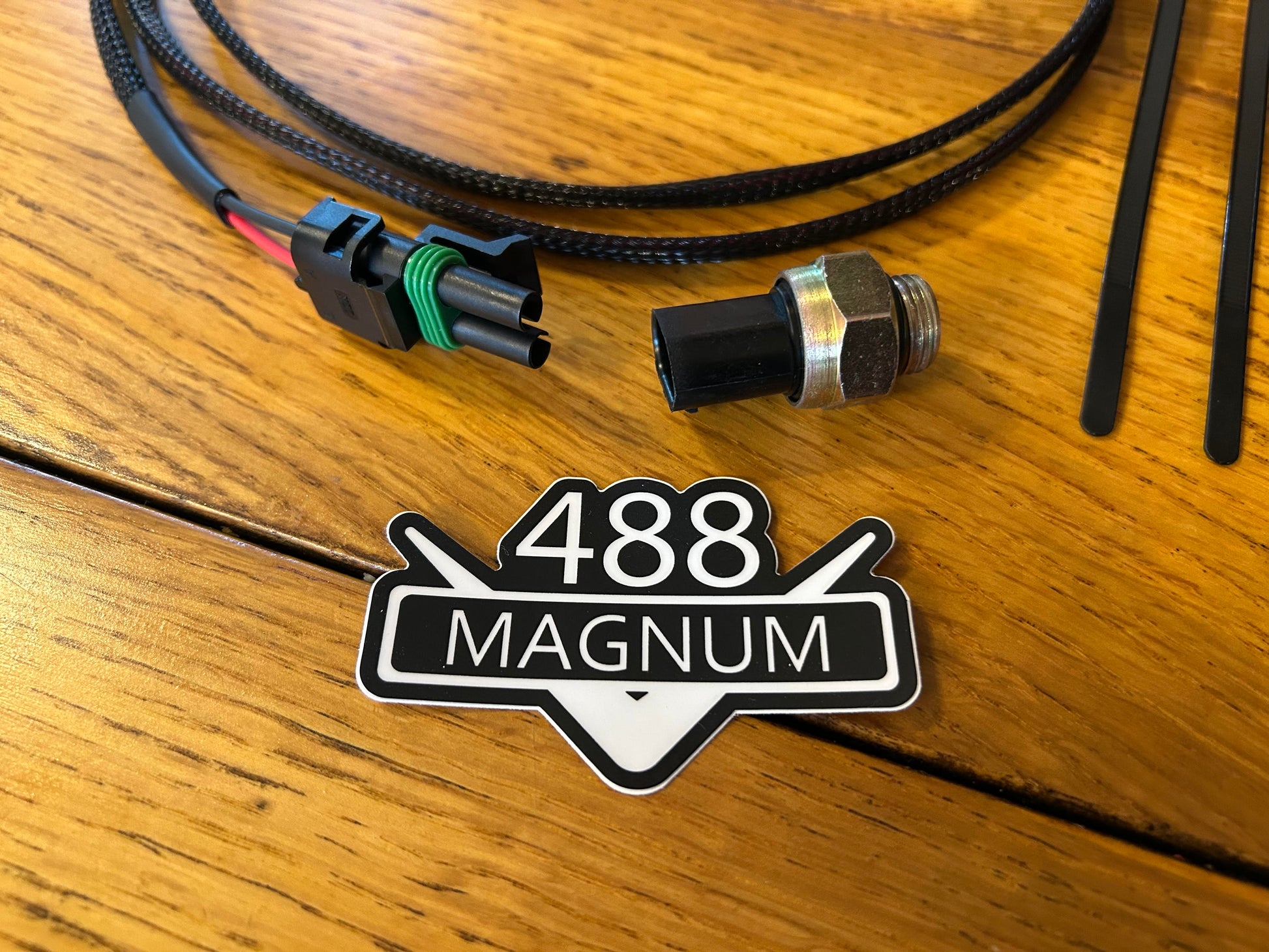

Transfer case switch is Dorman part# 600-551
